Enabling FTPS using vsftp

By default SFTP Gateway uses SFTP, which leverages OpenSSH. FTPS is not configured by default, because it requires that you expose additional ports.

However, there are some situations where you might need FTPS:

• Legacy clients that only support FTPS

• FTPS supports X509 SSL certificates, which may be a requirement for securely identifying the server

Here are instructions on how to install and configure vsftp on SFTP Gateway to add FTPS functionality. It also covers how to add an SSL certificate.

Installation

Elevate privileges to root:

sudo su

Install vsftp with this command:

yum install vsftpd -y

Create certificates

As a preparatory step, you need to first create a self-signed certificate. This is to encrypt your FTPS traffic.

Run the following commands:

mkdir /etc/ssl/private/ && cd $_openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout vsftpd.key -out vsftpd.crt -subj "/C=NA/ST=NA/L=NA/O=NA/OU=NA/CN=NA"

(Feel free to put in real values for your state, locality, organization, etc.)

This creates a directory /etc/ssl/private/

And then it creates two files:

• vsftpd.crt: This is your SSL certificate

• vsftpd.key: This is the private key

Eventually, you want to use a real SSL certificate, but for now, a self-signed cert will do.

Configure vsftp

Edit /etc/vsftpd/vsftpd.conf

On line 12, change anonymous_enable from YES to NO:

anonymous_enable=NO

On line 96, uncomment the following line:

chroot_local_user=YES

Append the following to the end of the vsftpd.conf file:

rsa_cert_file=/etc/ssl/private/vsftpd.crtrsa_private_key_file=/etc/ssl/private/vsftpd.keyssl_enable=YESallow_anon_ssl=NOforce_local_data_ssl=NOforce_local_logins_ssl=NOssl_tlsv1=YESssl_sslv2=NOssl_sslv3=NOrequire_ssl_reuse=NOssl_ciphers=HIGHuser_sub_token=$USERlocal_root=/home/$USER/home/$USERpasv_enable=YESpasv_min_port=1024pasv_max_port=1048pasv_address=<Public IP of your instance>

Note: remember to set the last line (pasv_address) to your Elastic IP

The first section configures SSL.

The second section sets the chroot directory.

And the third section configures your IP and ports.

Restart the service to apply your changes:

/etc/init.d/vsftpd restart

Make sure vsftpd runs after a reboot:

chkconfig vsftpd on

Configure your Security Group

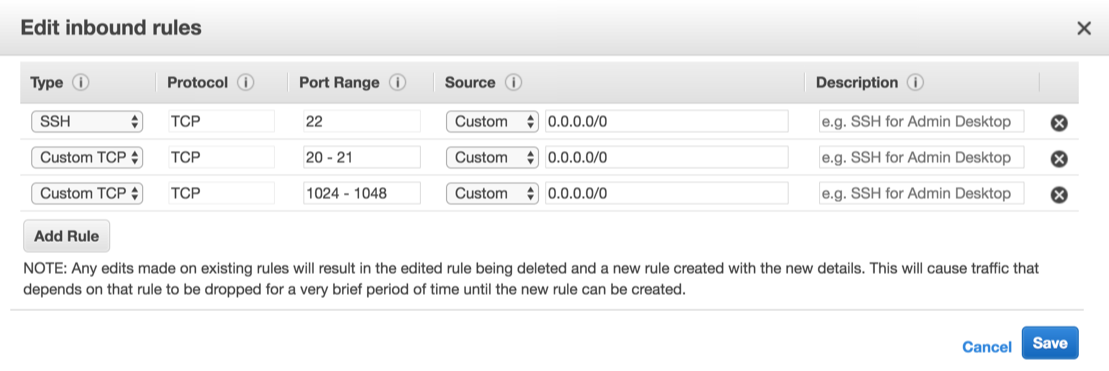

FTPS requires several ports, so you'll have to open them up on your EC2 Security Group.

• In CloudFormation, click the Resources tab

• Click the link next to SFTPGatewayInstance to open the EC2 instance details

• At the bottom, click the link next to Security groups

• Click the Inbound tab

• Click Edit

• Add a rule for Custom TCP, Port range 20-21, from Source Anywhere

• Add a rule for Custom TCP, Port range 1024-1048, from Source Anywhere

• Click Save

Integrate with SFTP Gateway

There are a few steps in order to get vsftp working with SFTP Gateway.

Create a new user:

addsftpuser robtest

Set a password for this user:

passwd robtest

The addsftpuser command disable's the user's shell for security reasons. You need to re-enable the user's shell in order to use FTPS:

usermod -s /bin/bash robtest

Connecting an FTPS client

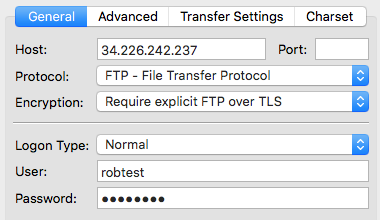

To test, connect using FileZilla.

• Protocol: Select FTP - File Transfer Protocol

• Encryption: Select Require explicit FTP over TLS

Log in with your username and password.

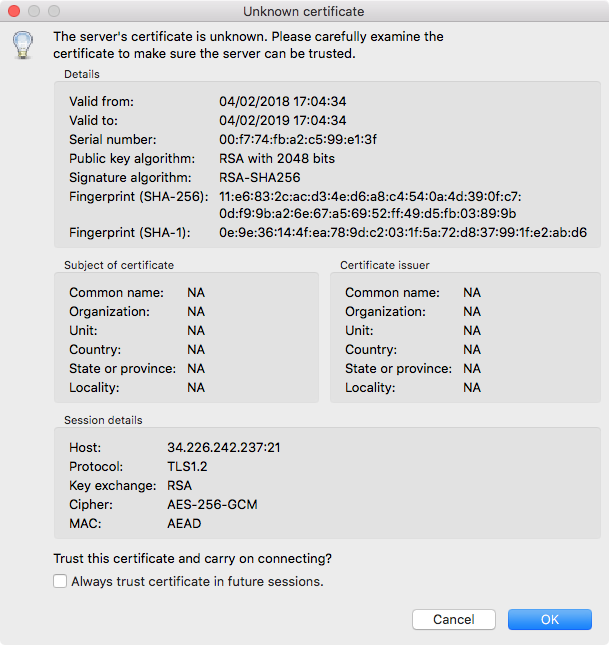

Since you're using a self-signed certificate, you will be prompted with this window. Click OK to proceed.

If all goes well, you should see your /uploads and /local/ folders.

Where to go from here

For more details on installing vsftp, check out this Stack Overflow article.

For more on configuring SSL for vsftp, see this article.
